The divergence spread and ceiling

This page applies the quantities from Definitions, the stereoscopic hyper field of view \(A(2)\) and the mean multiplicity, to both CTAO sites: fine-grained curves against div, then exactly where they turn over, the divergence ceiling.

Definition

Two numbers say how far an array can usefully be spread. The parallel reach is the angular radius of the widest camera, what the array sees pointed conventionally. The ceiling divergence is the div where the mean multiplicity falls to two. Below it, spreading grows \(A(2)\). Above it, the typical direction is seen by fewer than two telescopes, so spreading trades stereoscopic sky for sky the array can’t reconstruct from. \(A(2)\) peaks exactly at the ceiling and falls back towards zero past it. Push further and both divtel and a real array comply anyway, returning a configuration that records less, not more.

Divergence conserves \(\Omega\) (Definitions). Rotating the discs apart doesn’t shrink them, so an array that puts exactly two telescopes on every direction it covers would reach

\[A(2) = \Omega / 2\]

That bound is never hit. The multiplicity distribution at the ceiling spreads around its mean of two rather than sitting on it: some covered sky sits at multiplicity one and is wasted, some sits at three or more and is deeper than stereoscopy needs. Both gaps eat into the bound. The next two sections measure them for CTAO-North and CTAO-South.

CTAO-North: La Palma

Four LSTs sit inside nine MSTs. An LST camera has a field-of-view radius of about 2.15°, an MST’s about 3.84°, so the outer, more numerous subarray also carries the wider camera.

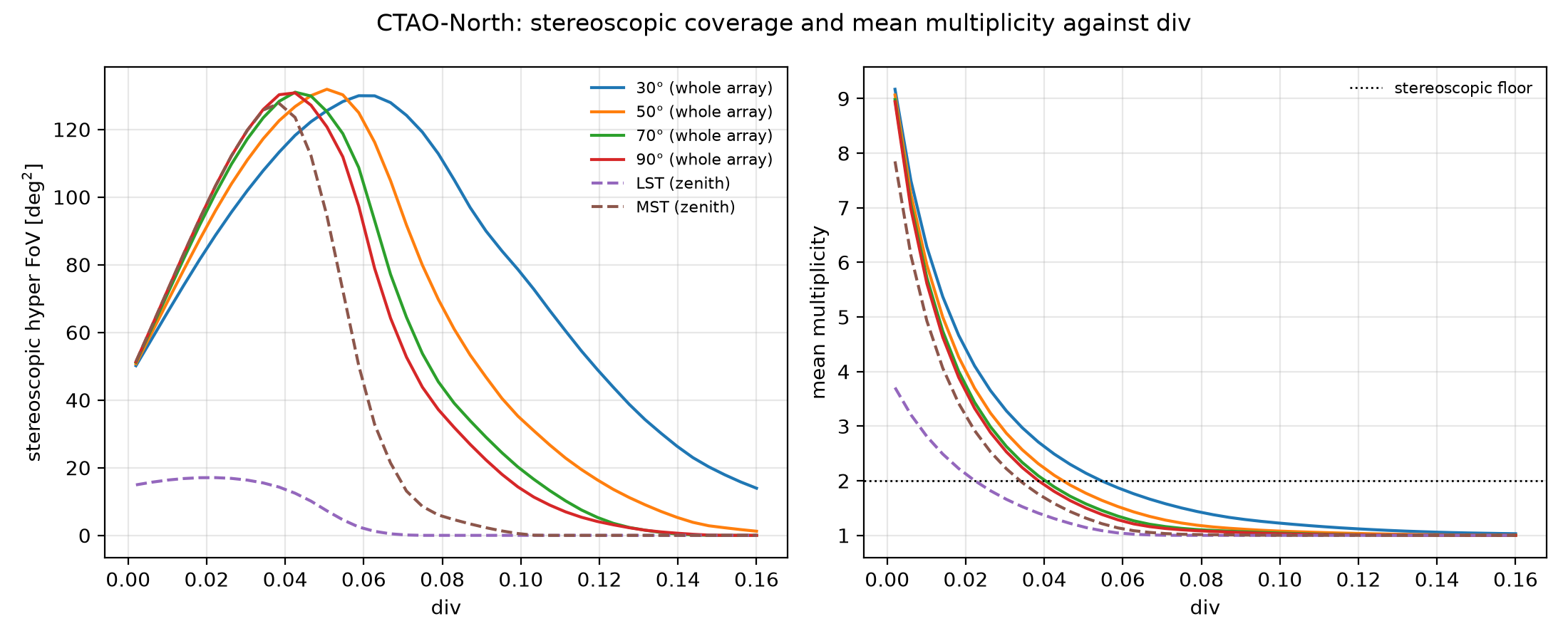

Left, stereoscopic hyper FoV against div, for the whole array at four altitudes and for the two telescope types alone at the zenith. Right, the corresponding mean multiplicity, with the stereoscopic floor of two marked.

Each type saturates on its own schedule. The four LSTs, the narrower camera, peak near div = 0.022 at 17 deg². The nine MSTs peak later, near div = 0.038, at 128 deg². The whole-array curve is not their sum: at low div it tracks the MSTs, then pulls ahead of them once the MSTs stop overlapping each other and cross-type pairs take over.

Altitude moves the peak without moving its height by much. Between 30° and 90° altitude the div that maximises coverage shifts from 0.043 to 0.059, while the coverage it buys stays within 1% of 132 deg². The parameter has to be chosen for the pointing. What it delivers is close to a property of the array.

CTAO-South: Paranal

Fourteen MSTs sit inside thirty-seven SSTs. The SST mirror is the smaller of the two, but its shorter focal length gives it the wider field of view: about 4.40° against 3.75° for the MST. Same shape as La Palma: the outer, more numerous subarray carries the wider camera. But the two cameras here are much closer in size.

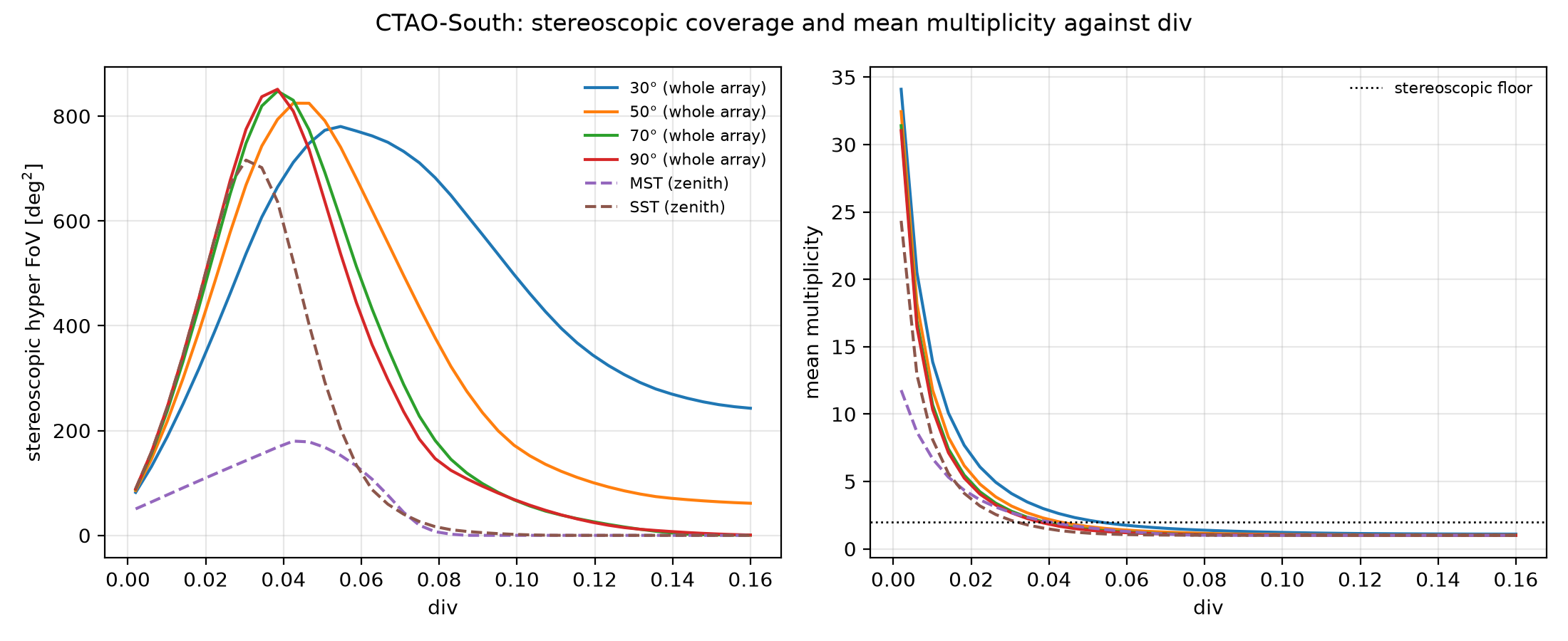

Same rise-then-collapse shape as La Palma, just bigger and faster. The SSTs, more numerous and wider-eyed, peak near div = 0.030 at 716 deg². The MSTs peak lower, near div = 0.043, at 180 deg². At low div the whole array tracks the SSTs almost exactly, since the MSTs’ narrower sky sits inside the SSTs’ wider one, so folding them in adds multiplicity rather than area. Push div further and cross-type pairs start carrying coverage the SSTs alone have lost.

Across 30° to 90° altitude the div that maximises coverage shifts from 0.038 to 0.055, while the coverage it buys stays within 8% of 851 deg². With fifty-one telescopes of two similarly sized cameras to pair up, Paranal keeps mean multiplicity above the stereoscopic floor of two well past the div where either subarray alone has given out.

Locating the ceiling

The table gives the parallel reach and the ceiling divergence for both arrays, at 60° altitude, 180° azimuth.

	CTAO-North	CTAO-South
Telescopes	4 LST, 9 MST	14 MST, 37 SST
Parallel reach	3.8°	4.4°
Parallel field of view \(A(1)\)	46 deg²	61 deg²
Parallel mean multiplicity	10.3	47.2
Total camera solid angle \(\Omega\)	474 deg²	2867 deg²
Ceiling divergence	0.042	0.040
Spread at the ceiling	7.7°	22.6°
Stereoscopic footprint \(A(2)\)	129 deg²	839 deg²
Gain over parallel	2.8×	13.8×
Fraction of the \(\Omega/2\) bound	54%	59%
Covered sky wasted at multiplicity 1	46%	41%
Covered sky deeper than needed (\(\geq\)3)	25%	28%

Spread is the largest angle between a telescope’s pointing and the array’s mean pointing, at the ceiling. Camera radii come from the prod6 layout files.

Two things the table and the maps show

The two arrays are alike in reach and differ in depth. CTAO-South is four times larger on the ground with four times the telescopes, yet the two parallel reaches sit within half a degree of each other and the two ceiling divergences within 0.002. Both quantities depend on the ratio of camera size to array scale, and that ratio happens to be similar at La Palma and Paranal. What the ceiling buys differs by a much larger factor, and the parallel mean multiplicity explains it: the gain available over parallel pointing is half of it, so South, with roughly four times North’s parallel depth, converts that depth into a correspondingly larger stereoscopic footprint. Divergence does not make a large array reach further than a small one. It lets a deep array trade depth it does not need for sky, and a shallow array has less to trade.

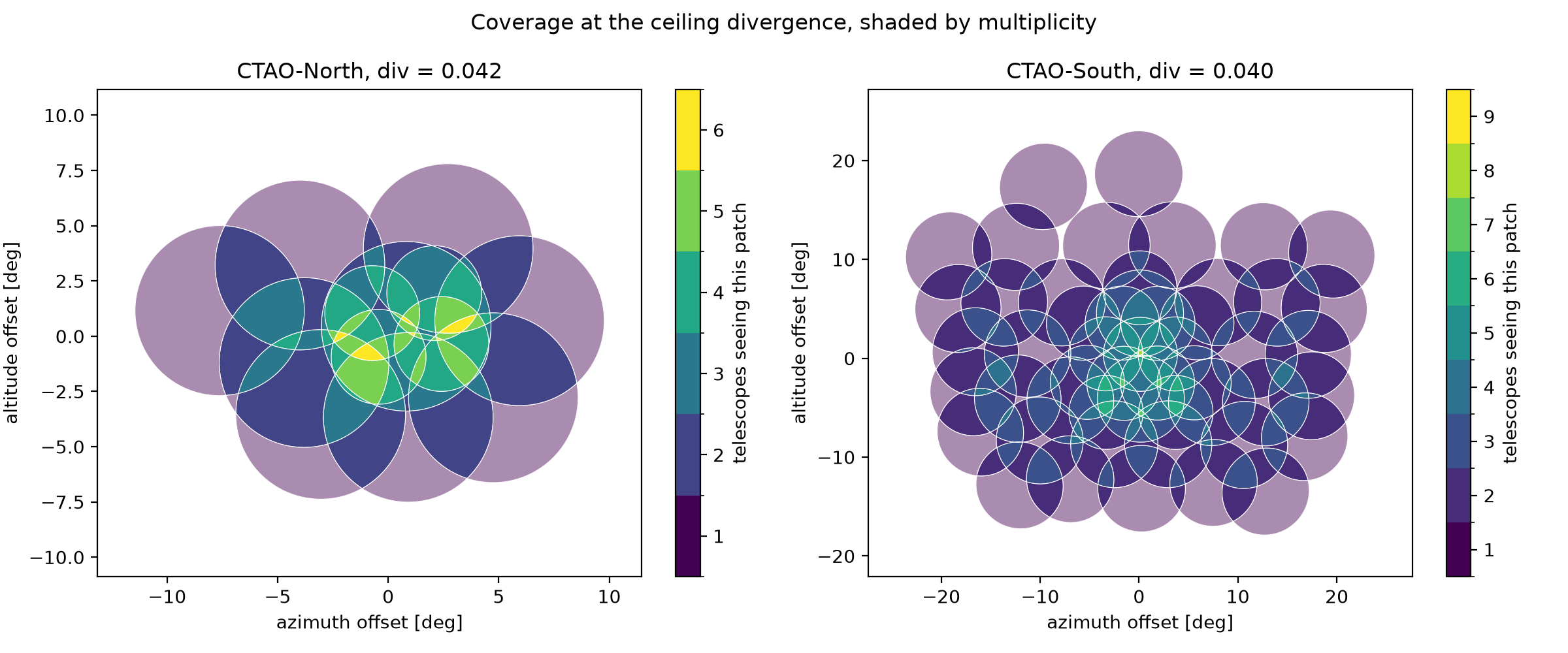

Nearly half of what a divergent array watches is wasted. Neither array attains the \(\Omega/2\) bound. The reason isn’t the mean multiplicity, it’s its spread: mean multiplicity is two at the ceiling in both cases, but a large share of the covered sky sits at multiplicity one, seen by a single telescope and useless for stereoscopic reconstruction, while a comparable share sits at three or more, deeper than stereoscopy requires. The maps above draw that structure directly: an over-covered core where several cameras pile up, ringed by a broad band seen by exactly one telescope. A symmetric fan is shaped like the array’s ground footprint and has no way to move depth from where there is too much of it to where there is none. Recovering that waste means giving up the single global parameter and letting each telescope’s pointing follow the target instead of the ground.
